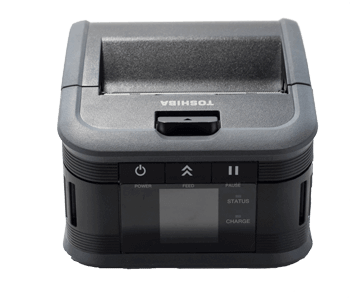

Toshiba B-FP3D

Expand the potential of your mobile workforce with Toshiba's compact and rugged range of mobile 3-inch label and receipt printers. Focused on receipt printing and with a plus version available for label applications, the B-FP3D delivers true versatility. Designed with the user in mind, the robust B-FP3D not only comes with full colour and user-friendly display, the unique mobile printer is set to have the flexibility to operate in the most diverse working environments.

Toshiba B-FP3D
  • Features & Benefits
  • Product Specification

Features & Benefits

Technology for every workplace, delivering advanced functionality, ease of use, and peace of mind. Based on this philosophy the B-FP3 series can handle a multitude of applications across the widest range of markets. From mobile POS or queue busting, through to issuing tickets or receipts at the roadside and cash on delivery for Logistical operations.

  • Full-colour LCD Display for easy operation
  • Rugged and durable in extreme conditions
  • Adaptable connectivity with Multi-Lingual printer language support
  • Super high print speed of up to 6 IPS
  • Fast processing with extended battery life.
  • IP54 without case on Plus Model
  • Simple to operate with a graphical colour display
  • Rugged and durable in extreme conditions
  • High-speed, fast processing with extended battery life”

Product Specification

General

Print Method
Direct thermal
Printhead
Flat head
Dimensions (W x D x H)
116 x 150 x 80 mm
Weight
0.7 kg (incl. battery)
User interface
128 x 128 pixel Graphic Colour Display
2 x LED (colours: green, amber, red), 3 x key
Temperature
Operating temperature
-15°C - 50°C (5°F - 122°F)
Charging temperature
0°C - 40°C (32°F - 104°F)
Humidity
25-85% non-condensing relative humidity (RH)
Power supply
2.5 Ah Li-ion battery 7.2V
Memory
16/32 MB SRAM
64 MB FROM
Drop Strength
1.6 m (multiple drops to concrete)

Print

Resolution
203 dpi (8 dots/mm)
Sensor
Reflective, Transmissible
Maximum Print Speed
152.4 mm/second (6 ips)
Maximum Print Width
72 mm
Print Length
Batch
5 - 995 mm
Receipt with black marks
5 - 995 mm
Peel-off
8 - 58 mm
Barcodes
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code, GS1 Databar, Plessy
2D Codes
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417, Micro QR, GS1 Data Matrix
Fonts
Bitmap font, Outline font, Price font, TTF, OTF, Writable characters
